SS 45mm Backset linear 3 Point Door Lock


For use with our 92mm centre espagnolette locking handle sets.

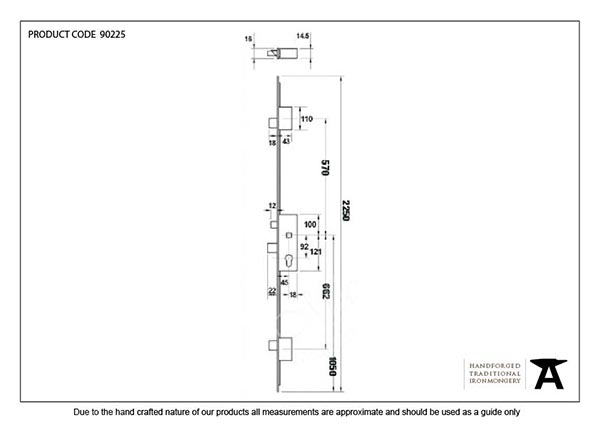

Overall Height: 2250mm

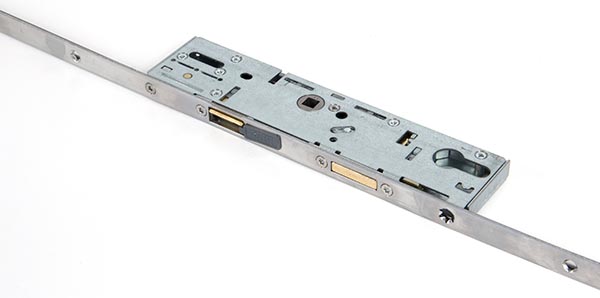

Centre Case Size: 221mm (H) x 14.5mm (T)

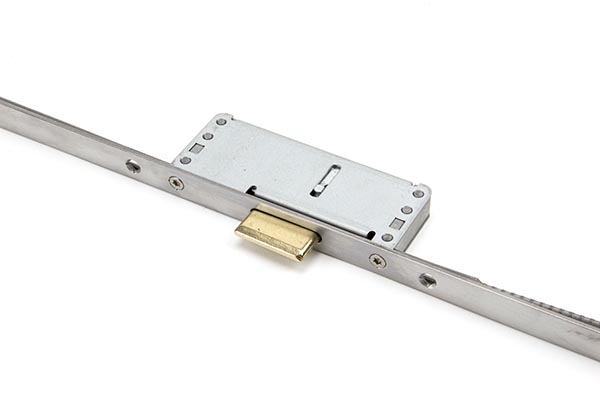

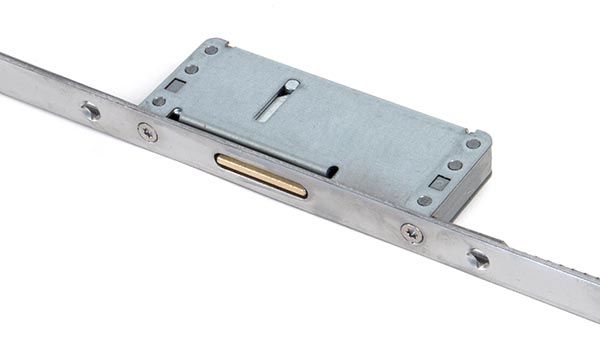

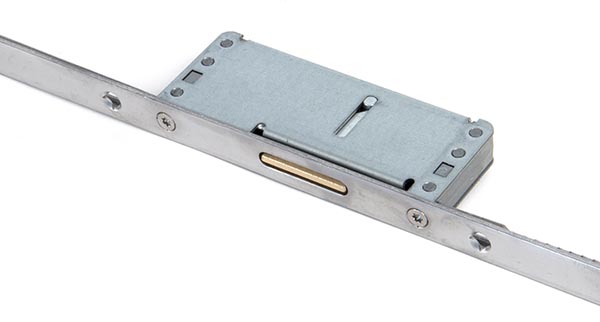

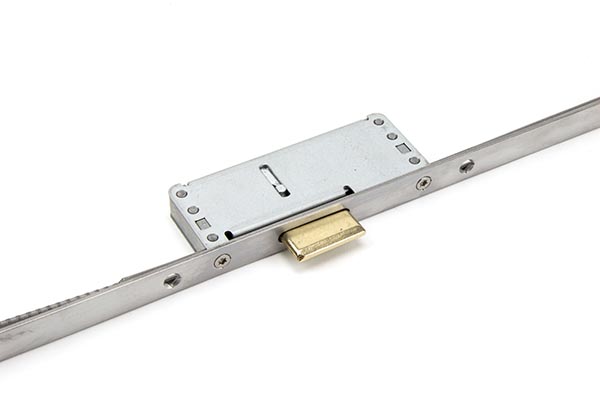

Linear Lock Box Size: 43mm (D) x 110mm (H) x 14.5mm (T)
Backset: 45mm
Min/Max Door Height: 1500mm – 2250mm

Can be turned into a 5-point lock with shootbolts for 3-point locks (91886).
Order matching keeps separately.
Minimum/maximum door height (for 5-point lock): 1970mm/2105mm.
Product Code 90225
