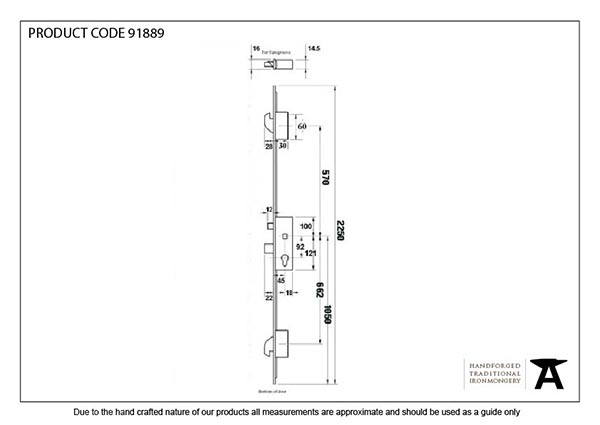

Overall Height: 2250mm
Centre Case Size: 221mm (H) x 14.5mm (T)
Case Depth: 63mm
Linear Lock Box Size: 43mm (D) x 110mm (H) x 14.5mm (T)
Min./Max. Door Height: 1500mm – 2250mm Can be turned into a 5-point lock with shootbolts for 3-point locks (91886). Order matching keeps separately. Minimum/maximum door height (for 5-point lock): 1970mm/2105mm.
