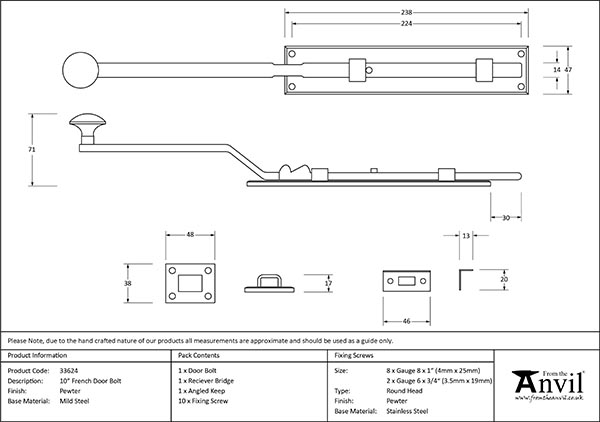

Overall Length: 435mm
Projection (Handle Arm): 72mm
Fixing Plate Size: 238mm x 47mm x 5mm

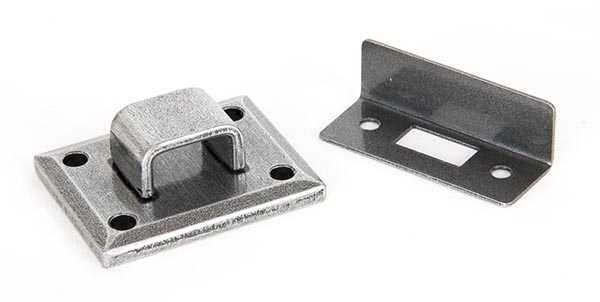

Receiver Bridge Size: 48mm x 38mm x 5mm
Receiver Bridge Height: 17mm
Angled Keep Size: 46mm x 20mm x 1mm (Depth: 13mm)
Throw: 27mm Features a long cranked handle for ease of use and can be used on inward or outward opening doors due to a variety of keeps supplied with the product. Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts. Supplied with matching SS wood screws.
Our pewter patina finish is forged from a durable base of steel and is a fine example of how our unique manufacturing techniques add further detail to the natural charm of metals. The process by which the contrasting textures of this finish are created results in a rich appearance that sits well in characterful, rustic homes but also offers a contemporary alterative in more modern settings.
