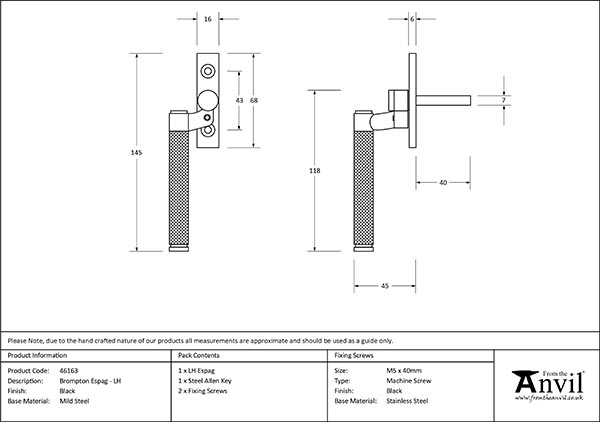

Overall Length: 145mm
Handle Length: 118mm

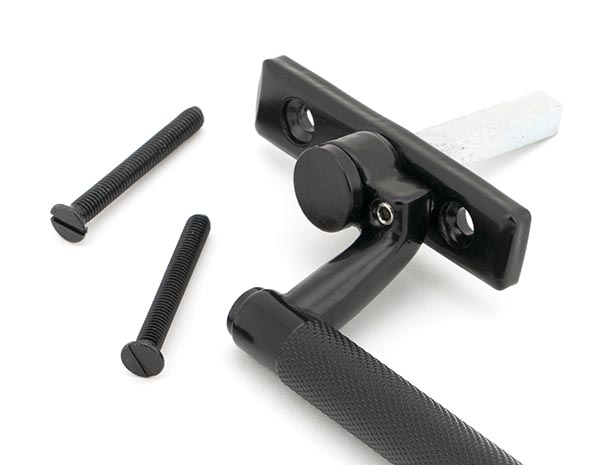

Fixing Plate Size: 68mm x 16mm x 6mm Designed to fit any type of window, including uPVC and timber due to its slim fixing plate. Can be matched with the brompton stays and door handles in the range. The product is handed and therefore care needs to be taken when choosing the correct hand. From the inside view, if your window is hinged on the left then a left-hand fastener is required. They have a 7mmÂ² x 40mm spindle and can be locked by way of a grub screw. Can be used with an espagnolette gearbox & window lock. Supplied with matching SS M5 screws.
