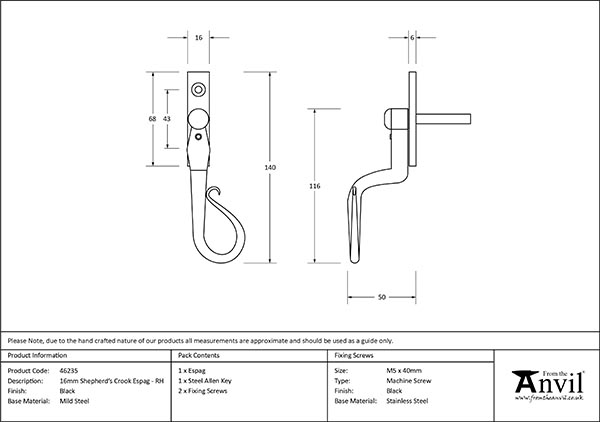

Overall Length: 140mm
Handle Length: 116mm

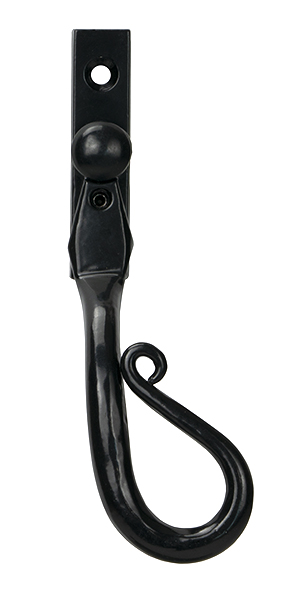

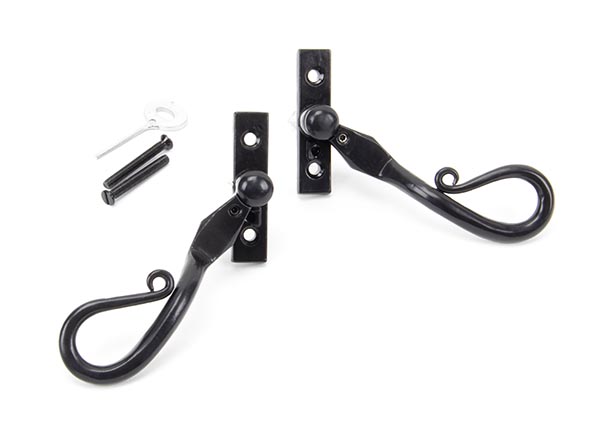

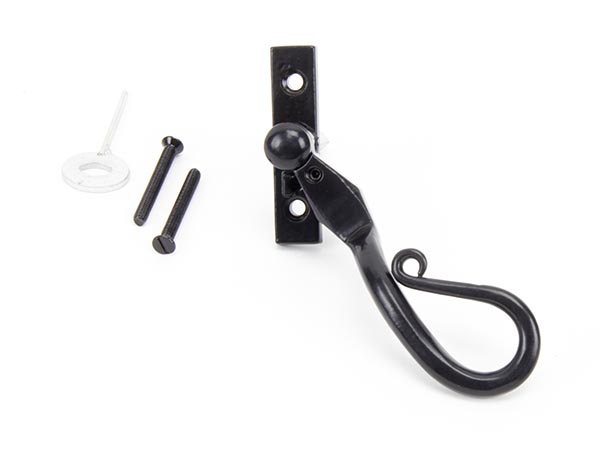

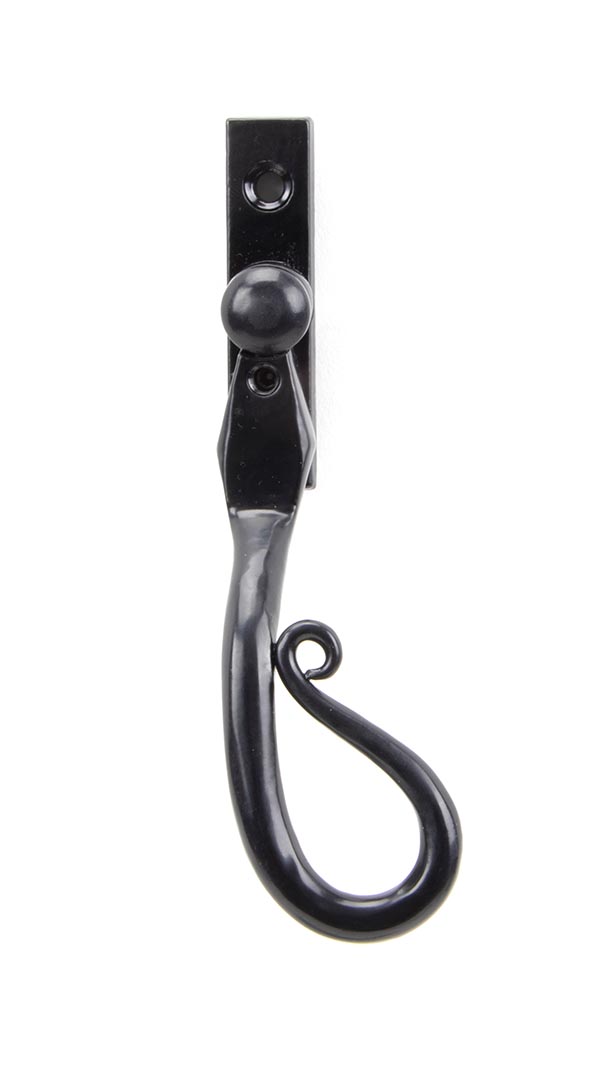

Fixing Plate Size: 68mm x 16mm x 6mm Designed to fit any type of window, including uPVC and timber due to its slim fixing plate. Can be matched with the shepherd’s crook stays in the range. The handle is cranked forwards to ensure this protrudes far enough from the window for ease of use. The product is handed and therefore care needs to be taken when choosing the correct hand. From the inside view, if your window is hinged on the right then a right-hand fastener is required. They have a 7mmÂ² x 40mm spindle and can be locked by way of a grub screw. Can be used with an espagnolette gearbox & window lock. Supplied with matching SS M5 screws.
